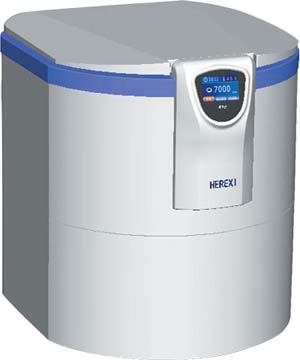

產品名稱：LR8M智能大容量冷凍離心機
產品價格：詢價
產品型號：LR8M
產品介紹：LR8M(DL8M)/LR7M(DL7M) 大容量冷凍離心機
LR8M(DL8M)/LR7M(DL7M) Large Capacity Refrigerated Centrifuge
采用國際先進數字控制電路，使離心機轉速更加準確穩定。
大功率變頻調速電機，配備進口變頻調速器，確保整機使用壽命更長。
制冷采用進口壓縮機組，溫度任意可調，溫控精度高，噪音小。
容量為6 x 1500ml（方杯）。
觸摸面板、數字顯示、全中文操作軟件，用戶可操作自如。
操作程序可編、可存、可取；用戶可設定9個程序供日常操作使用。 0-8檔升/降速率，用戶可靈活選擇合適的離心過程，達到最佳的離心效果，自動計算RCF值。
不銹鋼離心腔體、安全門鎖；超速、超溫保護、不平衡保護及故障自診斷等安全措施，確保人身、儀器安全，免除后顧之憂。
＆#8226; Uses the international advanced numerical control electric circuit, accurately causes the centrifuge rotational speed to be stable
＆#8226; The high efficiency frequency conversion velocity modulation electrical machinery, provides the import frequency conversion velometer, guarantees the entire machine service life to be longer
＆#8226; Use the imported compressor with the controlled temp, technology of pair of way by refrigerating or heating to meet the temperature control-accuracy, less noisily ＆#8226; Max.Capacity : 6 x 1500ml
＆#8226; Soft-touch panel, digital display programmable operation, it easy to use operator interface
＆#8226; The operation sequence may arrange, may save, may take; The user may establish 9 procedures to supply the daily operation use
＆#8226; To ensure high-quality separations from choosing properly, you can control the rates of acceleration and deceleration from 0-8 profiles with RCF ＆#118alue calculating automatically
＆#8226; With the self-diagnostic system it is provided with high-strength chamber-coating and protective means for imbalance, over temperature, over speed and electronic lock so it is safe and reliable to use it
參數 Technical data
型 號 Model LR8M(DL8M) LR7M(DL7M)
最高轉速 Max. speed rpm 8,000 min-1 7,000 min-1
最大離心力 Max. RCF 11,260×g 8,620×g
角轉子 Angle Rotor 6 ×500ml(8,000 min-1) 6 ×500ml(7,000 min-1)
RCF: 11260×g RCF: 8620×g
水平轉子 Swing-out Rotor 6 ×1000ml(4,500 min-1) 6 ×1000ml(4,500 min-1)
RCF: 5860×g RCF: 5860×g
水平轉子 Swing-out Rotor 6 ×1500ml(4,200 min-1) 6 ×1500ml(4,200 min-1)
RCF: 5100×g （方杯） RCF: 5100×g （方杯）
轉速精度 Speed accuracy ±20r/min ±20r/min
升/降速率 Acc/Dec Rate 0-8檔 0-8檔
電機 Motor 變頻電機 Converter Motor 變頻電機 Converter Motor
電機功率 Motor Power 4kw 4kw
制冷功率 Refrigerator Power 3kw 3kw
溫控范圍 Temp.Range -20℃ - +40℃ -20℃ - +40℃
溫控精度 Temp.Accuracy ±1℃ ±1℃
定時范圍 Time Range 0～9h 59min 0～9h 59min
電 源 Electric supply AC220 V/50 Hz 35A AC220 V/50 Hz 35A
噪 音 Noise level ﹤65 dB (A) ﹤65 dB (A)
外形尺寸[長×寬×高] [L × W × H] [L × W × H]
Dimensions 860 × 960 × 1200 mm 860 × 960 × 1200 mm
重量 Weight 500 kg 500 kg
