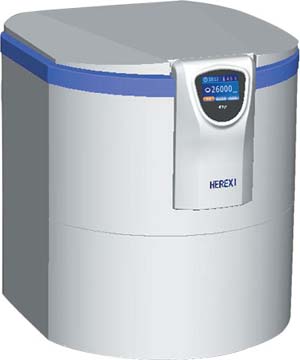

產品名稱：HR26M落地式高速冷凍離心機
產品價格：詢價
產品型號：HR26M
產品介紹：HR26M（GL26M）高速冷凍離心機
HR26M（GL26M）High Speed Refrigerated Centrifuge
·技術先進 性能優越
最新式變頻控制技術及免維護無碳刷電機
微機控制，可獨立設置離心力或轉速并隨機查閱
快速制冷加熱雙回路
寬電源，滿足不同用戶需求
·操作簡便 效果最佳
智能界面，觸摸面板，數字顯示
可編程操作，10檔升降速時間供用戶任意設定
自動計算RCF值，離心效果達到最佳
·各種保護 安全可靠
設有超速、超溫、不平衡、過流、過壓等多種保護
機身全金屬構造，不銹鋼內腔，堅固耐用
10種自我診斷保護功能，確保人身和儀器安全
·Aduanced technique Superior quality
Most new-style frequency conversion under the cintrol of technology and maintenance-free brushless drive motor. Computer-cintrolled,programmable RCF and speed even when it is running always able to check the speed and RCF. Two circuits for fast refrigeration and fast heating. Wide power to meet the requirements of different users. ·Simple Operation Best Effect
Intellectual interface,touching panel,digital display screen. It can be operated by programming, users arbitrarily setting the time of 10 levels raising or reducing speed. Automatically calculated RCF ＆#118alue,reach the best centrifugal effects.
·Various protections for safety and reliability
Allowing ultra-speed and ultra-temperature,without balance,overcurrent,overvoltage and other protections.
The fuselage satisfies metal structure,the stainless steel inner cavity,sturdy and durable.
10 self-diagnnoses to ensure personal safety and protect the machine from damage.
技術參數Technical data
最大容量Max.Capacity：6×500ml
最高轉速Max.speed rpm：26,000r/min
轉速精度Speed accuracy：±50r/min
最大離心力Max.RCF：43,993×g
溫控范圍Temp.Range：－20℃—＋40℃
溫控精度Temp.Accuracy： ±1℃
壓縮機Compressor： 進口壓縮機組imported compressor
定時范圍Time Range：0~9h 59min
電源Power Supply：AC220 V/50Hz 30A
噪音Noise Level：<68 dB（A）
外形尺寸[長×寬×高]Dimensions：[L×W×H]700×650×1080mm
重量Weight：260kg
HR26M（GL26M）轉子Rotor
12 × 1.5/2.2 ml HR26M(GL26M) max. 26,000 min-1 43,993 × g
10 × 5 ml HR26M(GL26M) max. 24,000 min-1 37,670 × g
24 x 1.5/2.2 ml HR26M(GL26M) max. 20,000 min-1 38,012 × g
16 × 10 ml HR26M(GL26M) max. 15,000 min-1 24,660 × g
6 × 50 ml HR26M(GL26M) max. 18,000 min-1 37,580 × g
8 x 50 ml HR26M(GL26M) max. 16,000 min-1 29,365 × g
4 × 100 ml HR26M(GL26M) max. 12,000 min-1 17,610 × g
4 x 300 ml HR26M(GL26M) max. 12,000 min-1 23,022 × g
6 × 300 ml HR26M(GL26M) max. 10,000 min-1 18,550 × g
6 × 500 ml HR26M(GL26M) max. 8,500 min-1 14,300 × g
