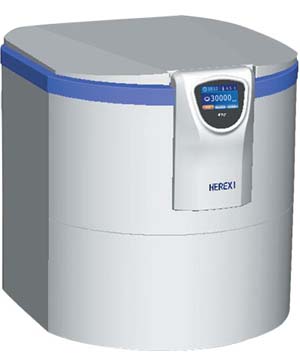

產品名稱：HR30M落地式高速冷凍離心機
產品價格：詢價
產品型號：HR30M
產品介紹：HR30M（GL30M）High Speed Refrigerated Centrifuge
·自動轉子識別系統。
·免維護高力矩?zé)o刷變頻電機直接驅動，啟動力矩大、加速時間短。
·大屏幕液晶顯示，觸摸屏設計，同時顯示設定參數和運行參數。
·主機和轉子運行參數自動存儲。
·十種加速與減速預設曲線，任一曲線都可自由編入程序。
·高效制冷系統，采用進口壓縮機組（無氟環保制冷劑）。
·設有不平衡、門蓋自鎖、超速、超溫多種保護功能，實現最佳運轉性能。
·可直接設定RCF值離心，無需設定轉速。
·不銹鋼腔體。 ·Automatic rotor identification system.
·Maintenance-free brushless drive motor with frequency inversion,has high start torque and short acceleration time.
·LCD,touching panel,set data and operation data can be calculated automatically.
·The operation parameters of centrifuge and rotor can be stored auto matically.
·10 quadratic and 10linear preset decelcration and acceleration curves, and curve can freely be programmed.
·Efficient refrigerating machine for temperatures,the imported compressor operating without Freon for the purpose of environment protection.
·The protection function of imbalance,selflock lid,over speed and over temperature of optimal iperating convenience. ·RCF ＆#118alue can be set directly for centrifuging operation with out Speed setting.
·Stainless steel bowl.
技術參數Technical data
最大容量Max.Capacity：6×500ml
最高轉速Max.speed rpm：30,000r/min
轉速精度Speed accuracy：±50r/min
最大離心力Max.RCF：58,570×g
溫控范圍Temp.Range：－20℃—＋40℃
溫控精度Temp.Accuracy： ±1℃
壓縮機Compressor： 進口壓縮機組imported compressor
定時范圍Time Range：0~9h 59min
電源Power Supply：AC220 V/50Hz 30A
噪音Noise Level：<70 dB（A）
外形尺寸[長×寬×高]Dimensions：[L×W×H]700×650×1080mm
重量Weight：270kg
HR30M（GL30M）
角轉子Fixed Angle Rotor
12 × 1.5/2.2 ml HR30M(GL30M) max. 30,000 min-1 58,570 × g
10 × 5 ml HR30M(GL30M) max. 24,000 min-1 37,670 × g
12 x 10 ml HR30M(GL30M) max. 20,000 min-1 37,250 × g
6 × 50 ml HR30M(GL30M) max. 20,000 min-1 37,580 × g
8 x 50 ml HR30M(GL30M) max. 18,000 min-1 37,165 × g
6 × 85 ml HR30M(GL30M) max. 16,000 min-1 26,100 × g
6 × 100 ml HR30M(GL30M) max. 15,000 min-1 27,150 × g
6 × 250 ml HR30M(GL30M) max. 10,000 min-1 15,200 × g
HR30M（GL30M）
水平轉子Swing-out Rotor
4 × 100 ml max.5,000 min-1 4,390 × g
4 × 250 ml max. 6,000 min-1 6,920 × g
HR30M（GL30M）
水平酶標轉子 Swing Enxymatic Rotor
2 × 2 × 96 孔 max. 4,000 min-1 2,200 × g
